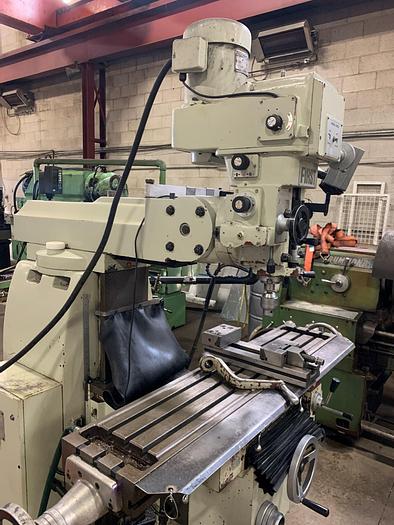

10" X 51", FIRST, LC20-VSG, VERTICAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC20-VSG |
| Stock Number | 4193 |
| Table size | 10" X 50" |
| Travel x axis | 31" |
| Travel y axis | 16.5" |
| Travel z axis (knee) | 16.5" |
| Feed rate x axis | 0.086 - 27"/MIN |
| Rapid x axis | 82.6"/ MIN |
| Spindle speeds | 60 - 4500 RPM |
| Spindle taper | #40 |
| Spindle travel | 5" |
| Spindle motor | 5 HP |
| Electrics | 575V/3PH/60CY |
| Approx. weight | 3,400 LBS. |
Equipped With

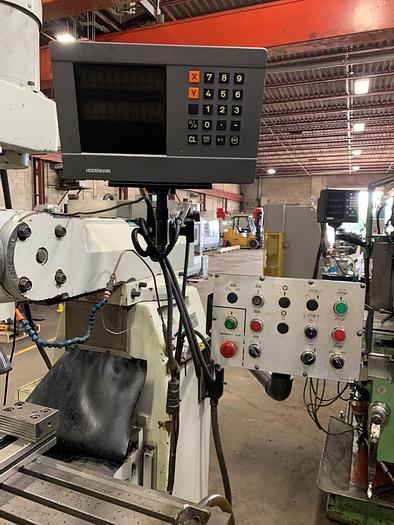

2-AXIS HEIDENHAIN DIGITAL READOUT POWERFEED ON X-AXIS POWER RISE AND FAL ON KNEE PENDANT CONTROL ONE SHOT LUBRICATION
