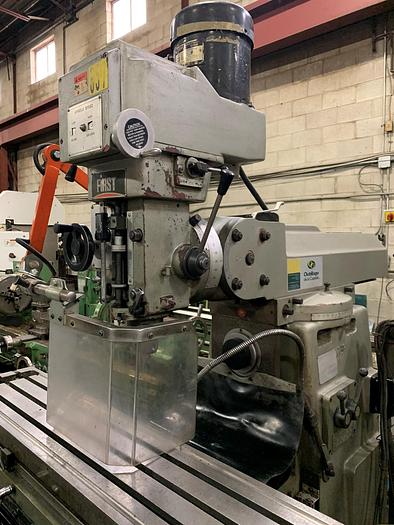

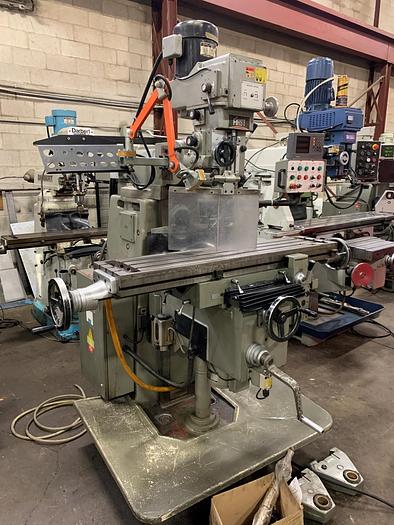

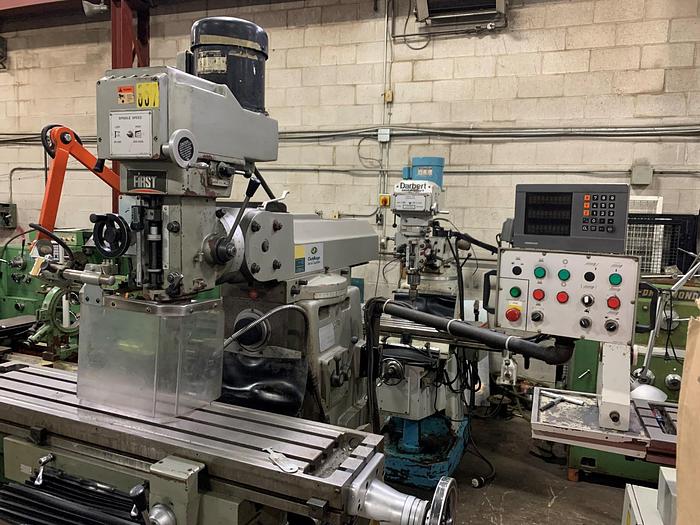

10" X 50", FIRST, LC-20VHS, VERTICAL / HORIZONTAL MILLING MACHINE
Sold
Specifications
Manufacturer | FIRST |
Model | LC-20VHS |
Stock Number | 4311 |
TABLE WIDTH | 10" |
TABLE LENGTH | 51” |
TABLE TRAVEL - LONGITUDINAL | 31" |
TABLE TRAVEL - CROSS | 16" |
VERTICAL QUILL TRAVEL | 5" |
VERTICAL KNEE TRAVEL | 15" |
SPINDLE TAPER | 40 |
SPINDLE SPEED | 60 - 4500 RPM |
MOTOR | 5 HP |
ELECTRICS | 575V/3/60 |
APPROX. DIMENSIONS | 70" X 66" X 94" Tall |
APPROX. WEIGHT | 3,250 LBS |
Equipped With
3-AXIS HEIDENHAIN DIGITAL READOUT

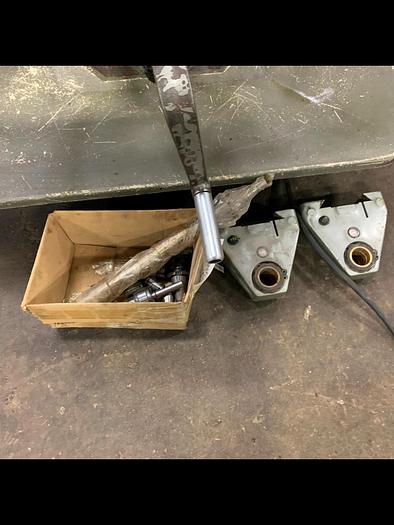

POWERFEED ON X-AXIS POWER RISE AND FALL ON THE KNEE ONE SHOT LUBRICATION ARBOR SUPPORTS & SPINDLE
PENDANT CONTROL
