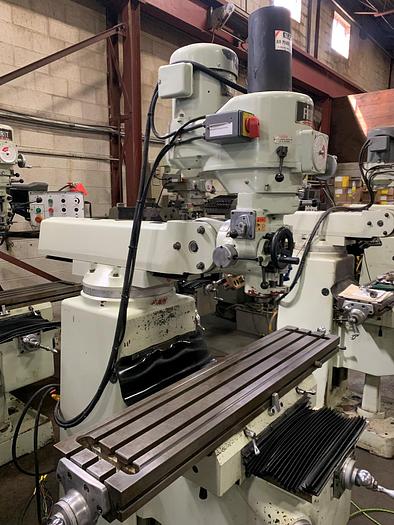

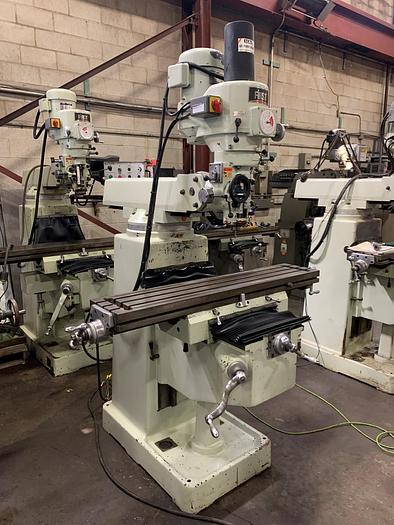

10" X 50" FIRST VERTICAL MILLING MACHINE

Sold

Specifications

ManufacturerFIRST
ModelLC-185VS
Stock Number4327
WORKING SURFACE10" X 50"
LONGITUDINAL TRAVEL31"
CROSS TRAVEL16.3"
VERTICAL TRAVEL (KNEE)15.3"
VERTICAL FEEDS (KNEE)RAPID
SPINDLE SPEEDS4500 RPM, VARIABLE
SPINDLE TAPERR8
QUILL TRAVEL5"
OVERARM TRAVEL18.5"
SPINDLE MOTOR3 HP
VERTICAL FEEDS1/2 HP
ELECTRICS575V/3/60
APPROX. WEIGHT2,750 LBS.

Equipped With

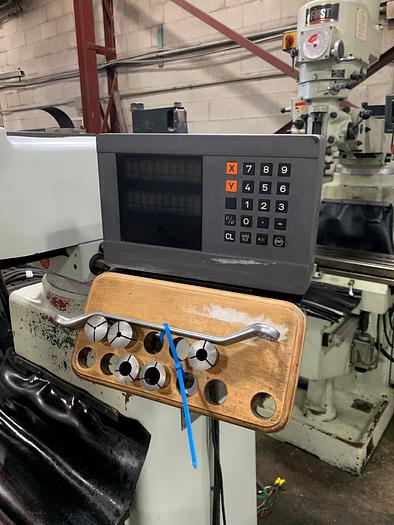

HEIDENHAIN 2-AXIS DIGITAL READOUT POWER DRAWBAR

ONE SHOT LUBRICATION

ASSORTED COLLETS
