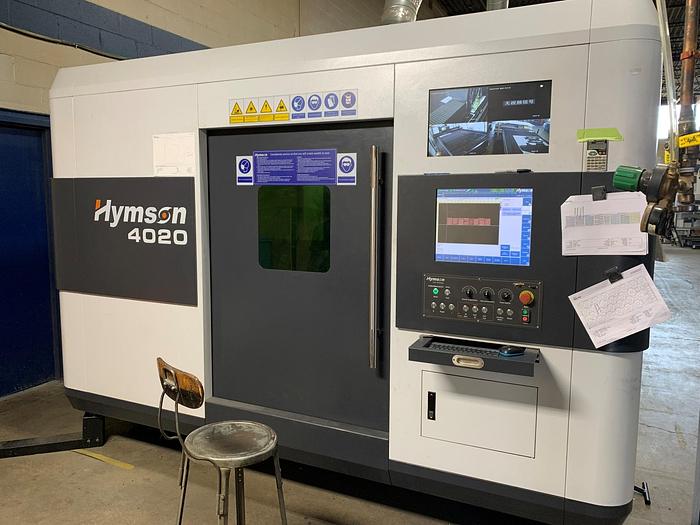

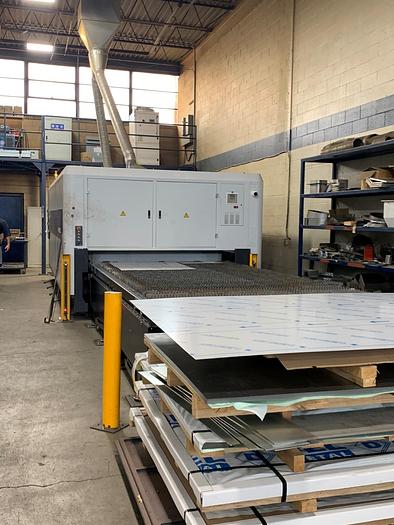

157" X 78" HYMSON, 6KW High Efficiency CNC Fiber Optic Laser, New 2019
Specifications
| Manufacturer | HYMSON |
| Model | HF 4020G-6000I |
| Year | 2019 |
| Stock Number | 4344 |

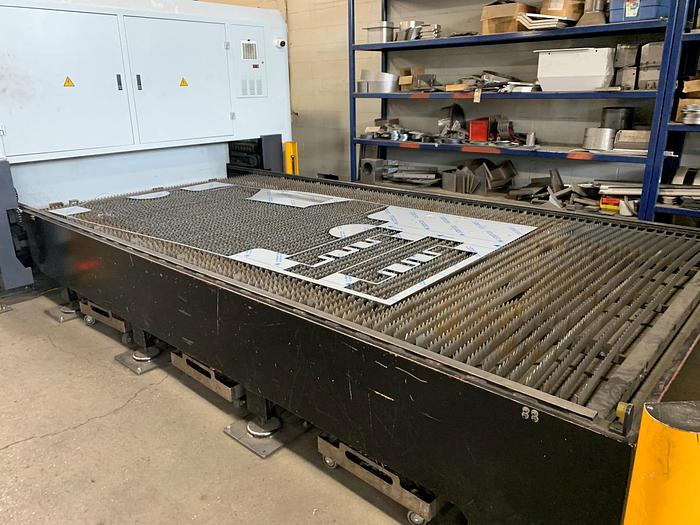

| Processing Range | 157.4" x 78.7" (4000 mm x 2000 mm). |
| Z-Axis Travel | 9.4" |
| Positioning Accuracy | + 0.0011" per 40" (+ 0.03 mm/m). |
| Positioning Repeatability | + 0.00078"( + 0.02 mm). |
| Max. Workpiece Load | 4,851 lbs. ( 2,200 kgs ) |
| Machine Footprint | 406" x 230" |
| Machine Height | 98.4" |
| Cutting Capacities: | Carbon Steel 1mm - 25 mm, Stainless 1mm - 25 mm, Aluminum 1mm - 20 mm, Brass/Copper 1mm - 12 mm |
Equipped With
Equipped With:
Honeycomb structure machine base (HYMSON patented feature) ensures the most stable platform for the most accurate precision cuts, absorbs vibration from extreme acceleration and deceleration and ensures a long operating life.

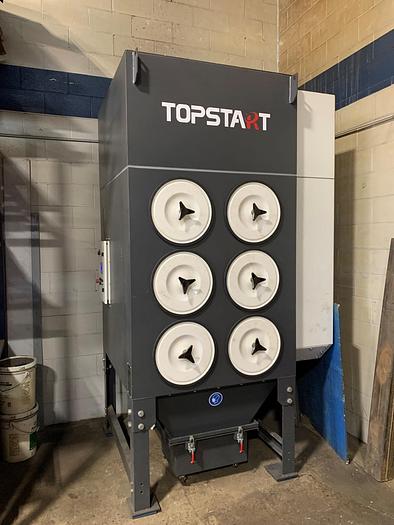

Intelligent Fume and Dust Exhaust system opens exhaust gates only where cutting is occurring. (8) or (10) Exhaust sections depending on table size offer optimal "Dust/Fume collection" performance.

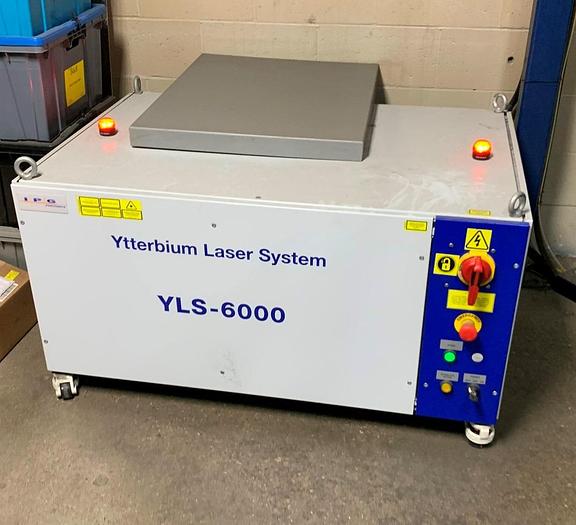

IPG (USA) 6000 Watt Fiber Laser Source.
BECKHOFF (Germany) control system and servo motors.
AVENTICS / REXROTH (Germany) proportional valve.
Features:
Electric cabinet separated from the machine with a constant temperature air conditioner ensures a long stable lifetime even in the most hostile environments.

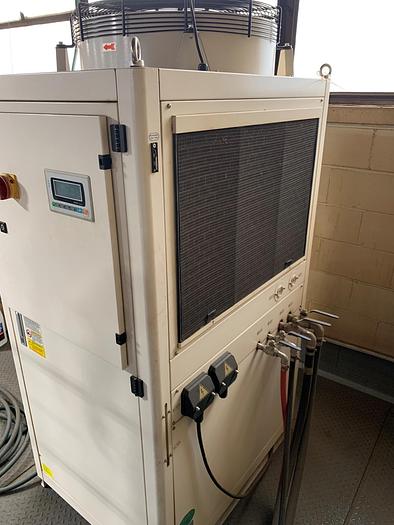

Environment friendly industrial water-cooling chiller.
Automatic Lubrication system.
Automatic Zooming feature for instant focus adjustment.
Laser Output Control from 0 - 100%.
HIYAG / PRECITEC Laser Head with IPG (USA) Laser Source.
Control and Software:
BECKHOFF (Germany) Machine Control System.
Graphic Formats Supported:
DST, PLT, BMP, DXF, DWG, AI, LAS.
Color Separation Capable: Yes.
