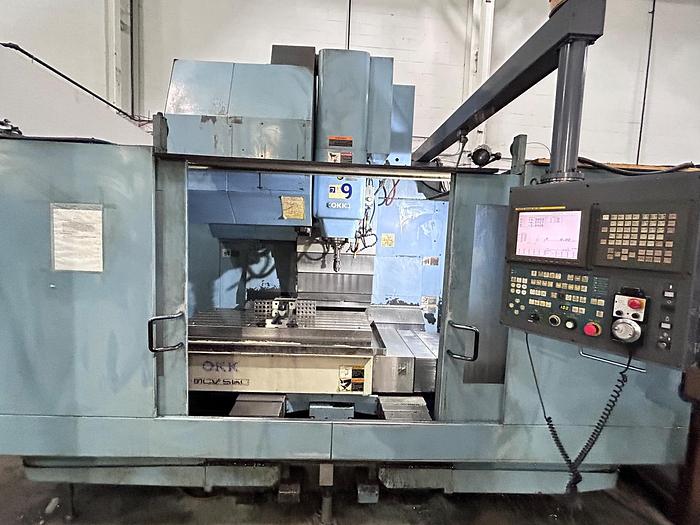

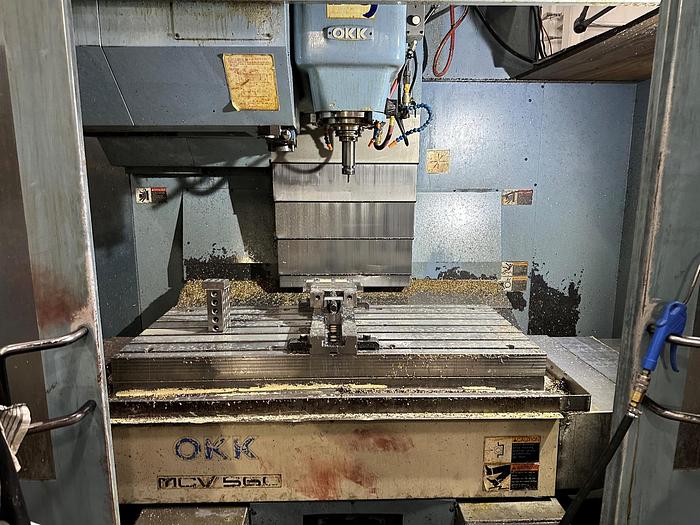

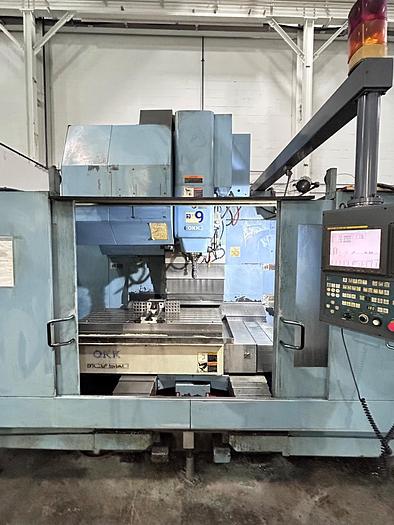

41.3"X, 22.04"Y, 22.04"Z, OKK, MCV-560, CNC VERTICAL MACHINING CENTER
orCall (905) 669-7507
Specifications
| Manufacturer | OKK |
| Model | MCV-560 |
| Year | 2001 |
| Stock Number | 4406 |
| TABLE SIZE | 51" X 22.4" |
| X-AXIS TRAVEL | 41.3" |
| Y-AXIS TRAVEL | 22.04" |
| Z-AXIS TRAVEL | 22.04" |
| SPINDLE TAPER | # 50 |
| MAX. SPINDLE SPEED | 4500 RPM |
| MAX. TABLE LOAD | 3,300 LBS. |
| TOOL CHANGER | 24 ATC |
| MOTOR | 25 HP |
Equipped With

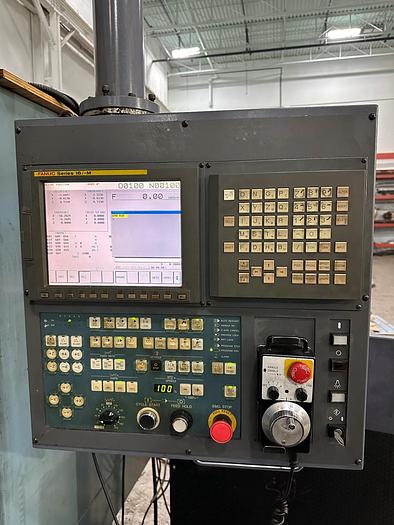

FANUC 16iM CNC CONTROL
COOLANT THRU SPINDLE
FULL ENCLOSURE

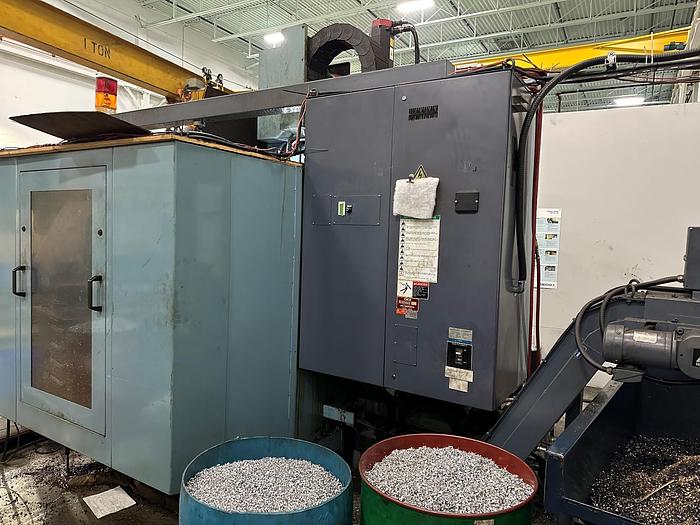

CHIP CONVEYOR
FULL SET OF MANUALS
