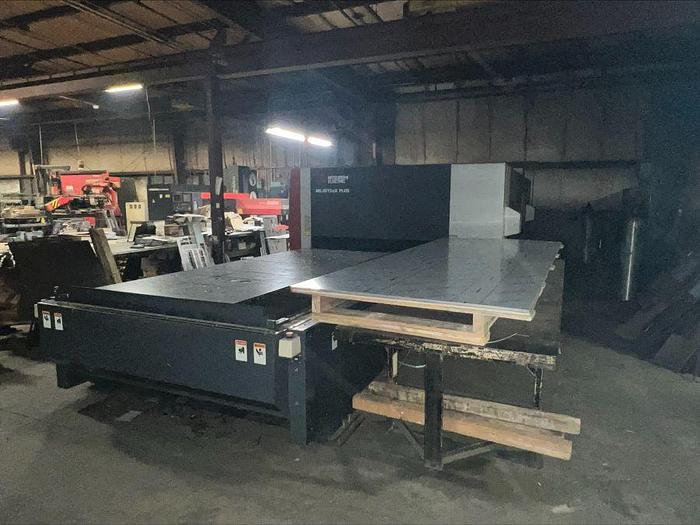

4500-Watt 5' x 10' Mitsubishi ML-3015 EX Plus CO2 laser system Manufactured in June of 2015

Processing Machine Specifications

Machine structure: X/Y Precision Rack & Pinion – Z=precision ball screw

Travel drive method: X-Y-Z simultaneous 3 axes (Z-axis height control is also possible)

Maximum workpiece size: 120.1 x 60.0

Table pass height: 34.6

Processing access: Automatic up/down door

Pallet changer: Provided

X-axis stroke: 122

Y-axis stroke: 61

Z-axis stroke: 5.9

Rapid travel speed (X,Y) inches per minute: 3940/5550 simultaneous

Maximum processing federate, inches per minute: 1970

Positioning precision: 0.0019/20 (X,Y), 0.0039/4 (Z)

Drive motor type: Intelligent AC servo

Maximum workpiece weight: 2050 lbs.

Control system Specifications:

CPU: 64-bit

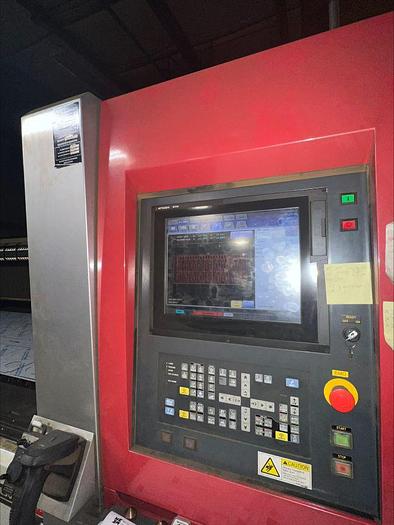

Display screen: 15” TFT color LCD touch screen

Hard disk: 20.0 GB

Generator output control: Output power, frequency, duty

Generator operation control: Beam on/off, laser gas charge, etc.

Drive system: X,Y,Z simultaneous control

Position detection system: Encoder

Minimum command input: 0.001 mm / 0.001”

Program input system: USB Computer Link, ethernet LAN

Pallet Changer Specifications:

Drive mechanism: Chain

Pallet change time (Sec.): Approximate 30

Work clamps: 2 sets on Y Axis

Pallet capacity: 2050 lbs.

Applicable machine size: 3015 (5’ x 10’)

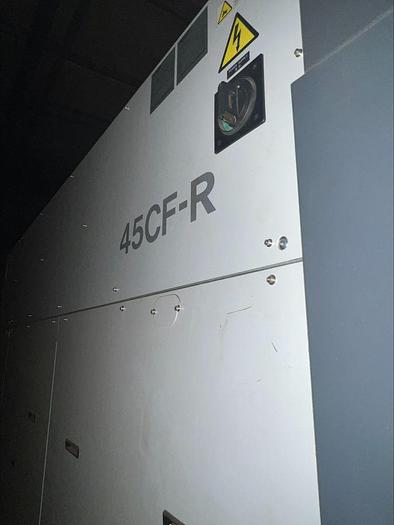

CO2 Laser specifications- 45CF-R

Excitation method: 3-axis cross flow, silent discharge

Maximum output power: 4500-watts

Rated output power: 4500-watts

Control method: Power feedback

Power stability: Less than +/- 1 % of rated power

Beam mode: Low-order

Beam outer diameter: 1.02

Beam divergence (mrad): Approximately 3.5 of less total angle

Las gas composition (CO2:CO:N2:He): 8:4:60:28

Laser gas consumption rate (liter/hour): 24 during continuous oscillation

Wave length: 10.6 microns

Frequency setting range: 10~3000 Hz

Duty range: 0~100 percent adjustable

Output power adjustable range: 0~100 percent

Equipped with:

Chiller

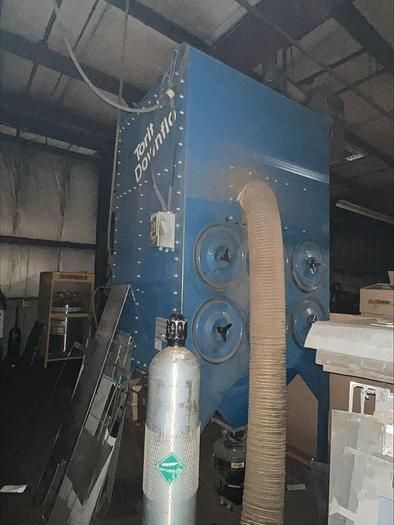

Dust Collector
