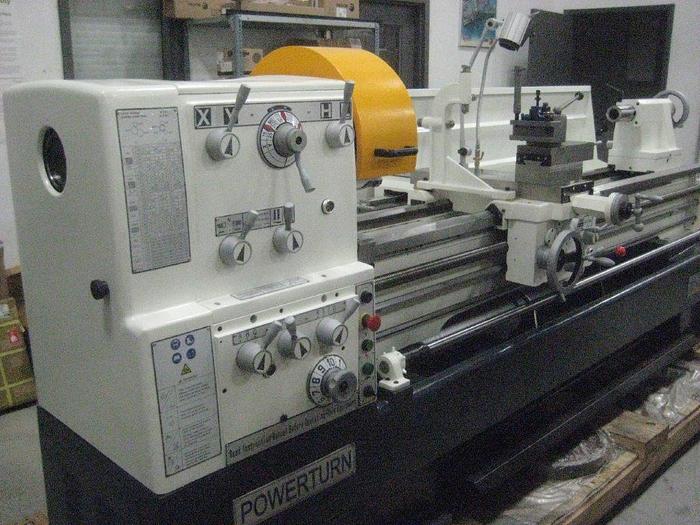

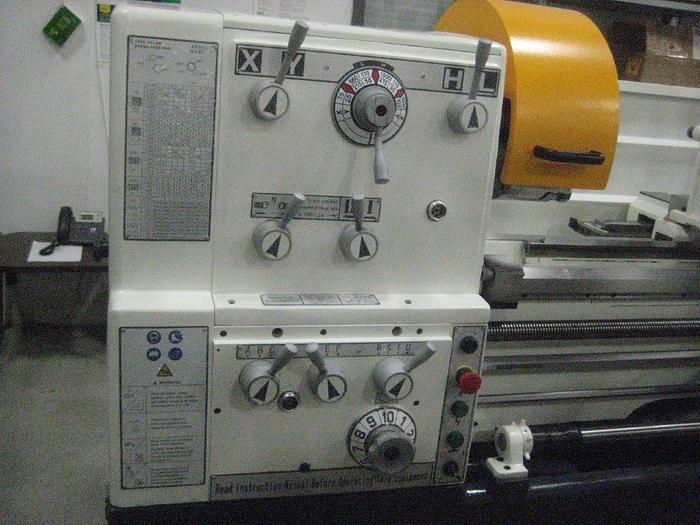

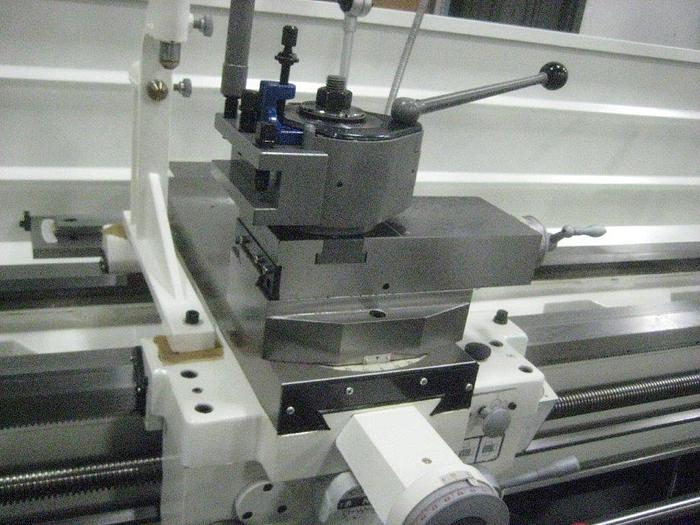

" NEW " 22" X 60" POWERTURN PRECISION LATHE - W/4-1/8" BORE
Specifications
| Manufacturer | POWERTURN |
| Stock Number | 4495 |
| SWING OVER BEDWAYS | 22" |
| MAX. SWING OVER CROSS SLIDE | 13-3/4"" |
| SWING IN GAP | 31" |
| CENTER DISTANCE | 60" |
| SPINDLE BORE | 4-1/8" |
| SPINDLE NOSE - CAMLOCK | D1-8 |
| SPINDLE SPEEDS | 25 - 1500 RPM |
| SPINDLE TRAVEL OF TAILSTOCK | 6-1/4" |
| TAILSTOCK TAPER | 5 MT |
| MAIN SPINDLE MOTOR | 10 HP |
| APPROX. WEIGHT OF MACHINE | 5,300 LBS. |
Equipped With
STANDARD EQUIPMENT: One Piece Cast Base Hardened & Ground Bedways Foot Pedal Brake Coolant System Splash Guard Threading Cutting Dial Quick Change Toolpost 40 pos. c/w 4 Holders 3 – Jaw Chuck 12” Dia. 4 – Jaw Chuck Steady Rest Follow Rest Instruction Manual & Tools Electrics 575/3/60 CSA EXTRA FOR: 16" Faceplate---------------------------------------------- $ 445.00 Large Steady Rest (300 mm) Roller Type----------- $ 1,675.00 Taper Turning Attachment------------------------------ $ 1,730.00 Chuck guard------------------------------------------------ $ 520.00 Fagor Digital Readout System --- (60” Centers)--- $ 4,550.00 Live Centre #5MT------------------------------------------ $ 325.00 WARRANTY: PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship. LABOUR - One Year “ON SITE” labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers’ responsibility.
