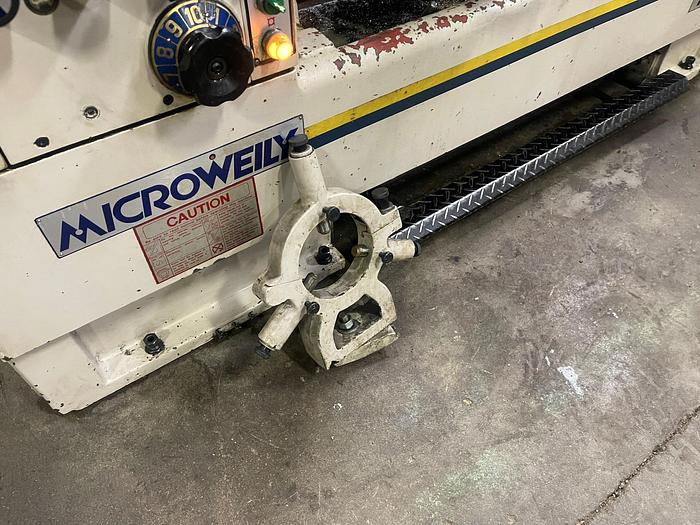

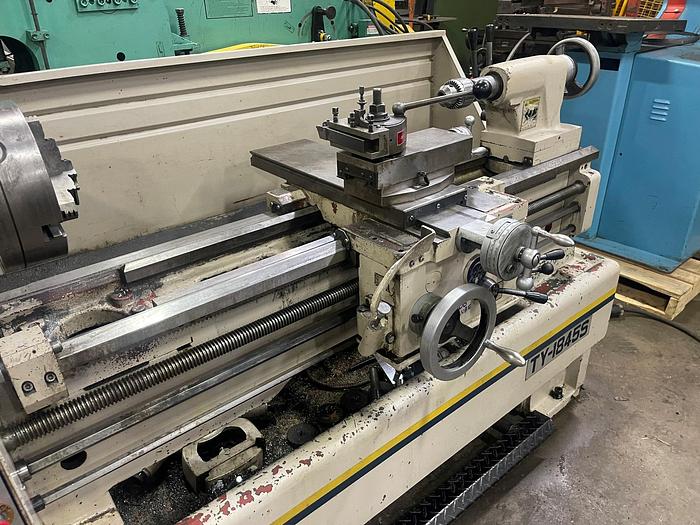

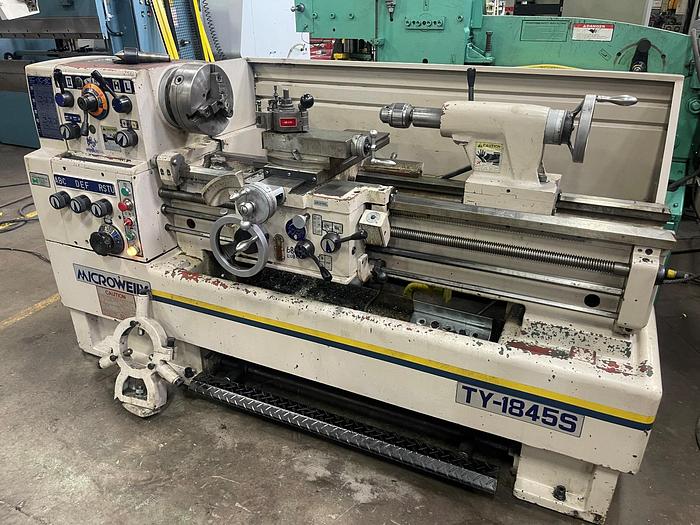

18" X 45", MICROWEILY, TOOLROOM LATHE
Sold
Specifications
| Manufacturer | MICROWEILY |
| Model | TY-1845S |
| Stock Number | 4496 |
| SWING OVER BED | 18.11" |
| DISTANCE BETWEEN CENTERS | 45.07" |
| SWING OVER CROSS SLIDE | 11.33" |
| SWING IN GAP | 25.19" |
| LENGTH OF GAP IN FRONT OF FACEPLATE | 7.08" |
| BED WIDTH | 11.81" |
| SPINDLE BORE | 2.28" |
| SPINDLE NOSE | D1-6 |
| SPINDLE TAPER IN NOSE | MT6 |
| SPINDLE TAPER IN SLEEVE | MT4 |
| SPINDLE SPEED RANGE | UP TO 2000 RPM |
| CROSS SLIDE TRAVEL | 10.43" |
| COMPOUND REST TRAVEL | 5.31" |
| SPINDLE MOTOR | 7-1/2 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT OF MACHINE | 3,900 LBS. |
Equipped With
10" 3-JAW CHUCK
STEADY REST
LIVE CENTER
FOOTBRAKE
QUICK CHANGE TOOLPOST W/ONE HOLDER
COOLANT
INCH/METRIC THREADING
