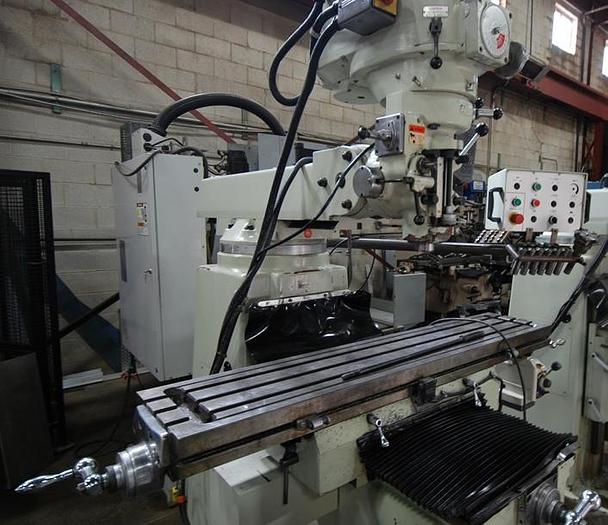

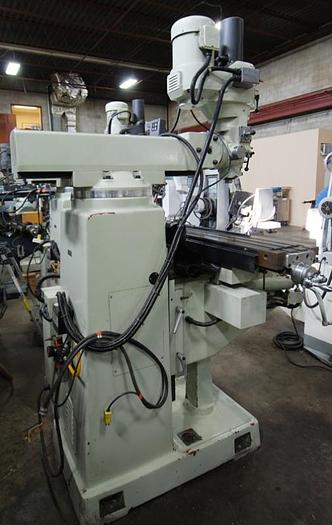

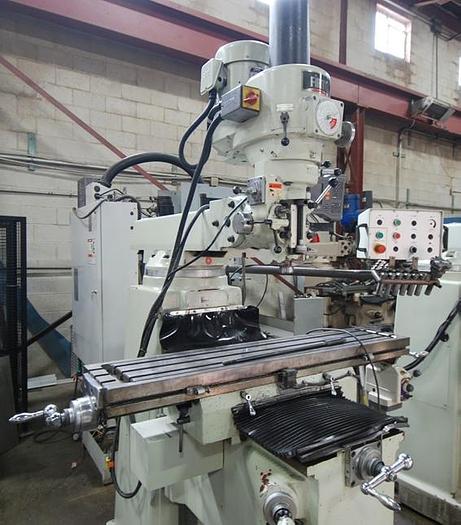

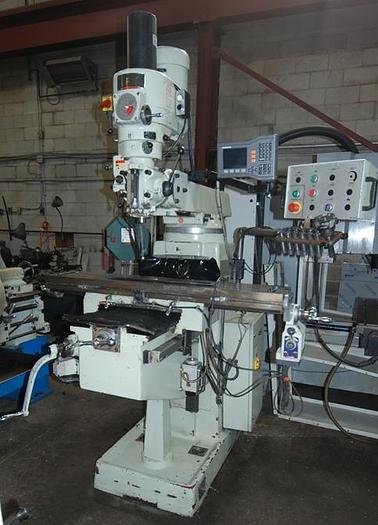

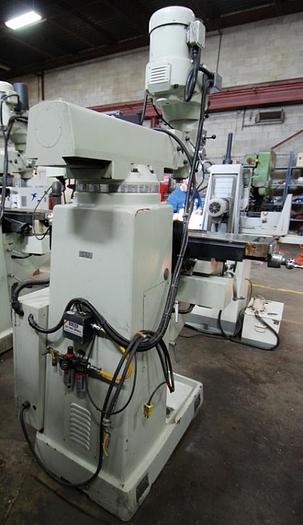

10" X 50", FIRST, LC-185VS-B, 2011, VERTICAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-185VS-B |
| Year | 2011 |
| Stock Number | 4002 |
| WORKING SURFACE | 10" X 50" |
| LONGITUDINAL TRAVEL | 31" |
| CROSS TRAVEL | 16.3" |
| VERTICAL TRAVEL (KNEE) | 15.3" |
| VERTICAL FEEDS (KNEE) | RAPID |
| SPINDLE SPEEDS | 4500 RPM, VARIABLE |
| SPINDLE TAPER | R8 |
| QUILL TRAVEL | 5" |
| OVERARM TRAVEL | 18.5" |
| HEAD SWIVELS | R&L 90° / F&B 45° |
| SPINDLE MOTOR | 3 HP |
| VERTICAL FEEDS | 1/2 HP |
| COOLANT PUMP | 1/8 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT | 2,750 LBS. |
Equipped With
HEIDENHAIN 2-AXIS DIGITAL READOUT PENDANT CONTROL ALIGN POWER DRAWBAR POWERFEED X-AXIS POWERED RAPID FEED Z-AXIS (KNEE)
LUBRICATION
