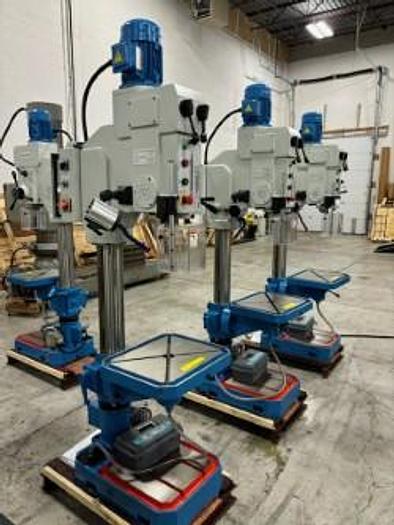

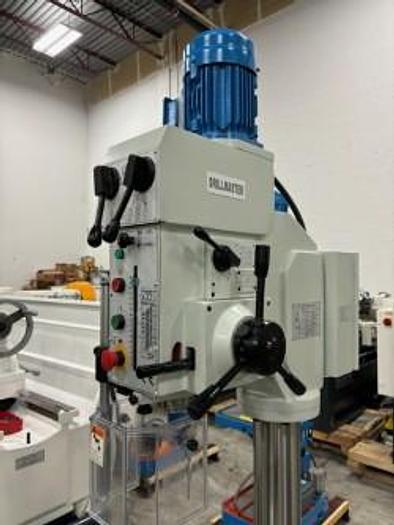

"NEW", DRILLMASTER, GEARED HEAD DRILLING MACHINE, W/ POWER QUILL FEED
orCall (905) 669-7507
Specifications
| Manufacturer | DRILLMASTER |
| Model | ZN5035B |
| Stock Number | 3473 |
| DRILLING CAPACITY - MILD STEEL | 1.377" |
| SPINDLE TRAVEL | 6.1" |
| SPINDLE SPEEDS | 150 - 3650 RPM |
| SPINDLE TAPERS | MT 4 |
| COLUMN DIAMETER | 4.72" |
| NUMBER OF POWER FEEDS | ( 3 ) |
| WORK TABLE SIZE | 14.5" X 14.5" |
| DISTANCE (SPINDLE TO COLUMN) | 11" |
| MAX. DISTANCE SPINDLE TO TABLE | 46.5" |
| APPROX. WEIGHT | 950 LBS. |
Equipped With
SPINDLE SAFETY SHIELD
COOLANT PUMP
TOOLS & MANUAL
MANUAL ELEVATION OF TABLE ELECTRICS 575V/3/60 ( NEED APPROX. 14 DAYS TO GET CSA )
WARRANTY: PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship. LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers responsibility.
