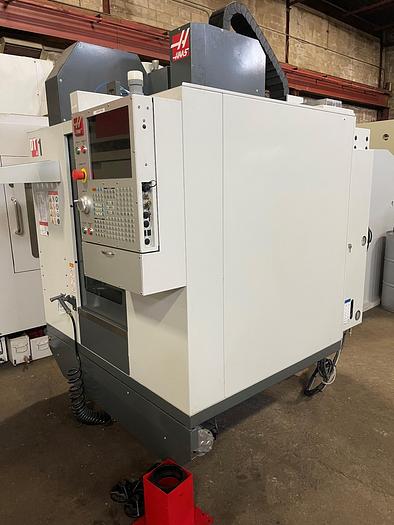

20"X, 16"Y, 15.5"Z, HAAS, DT-1, 2020, CNC DRILL & TAP MACHINE WITH 5-AXIS TRUNNION TABLE

orCall (905) 669-7507

Specifications

ManufacturerHAAS
ModelDT-1
Year2021
Stock Number4534
TABLE AREA15" x 26"
X-AXIS TRAVEL20"
Y-AXIS TRAVEL16"
Z-AXIS TRAVEL15.5"
SPINDLE NOSE TO TABLE21.5" Max 6" min
NO. OF STATIONS ON ATC20 + 1
SPINDLE TAPERBT -30
MAX. SPINDLE SPEED10,000 RPM
RAPID FEED RATE - X /Y /Z2400 IPM (X, Y & Z)
MAIN MOTOR15 HP

Equipped With

10,000 rpm

1 GB memory

Brushless 4th & 5th Axis options

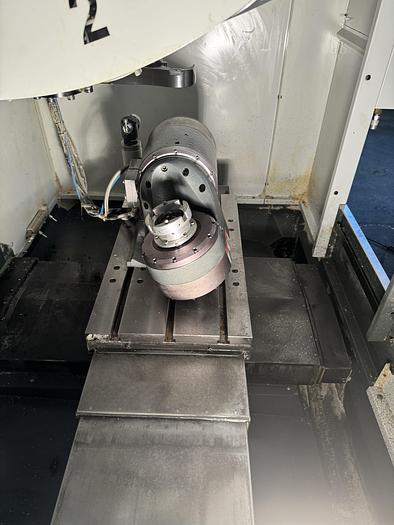

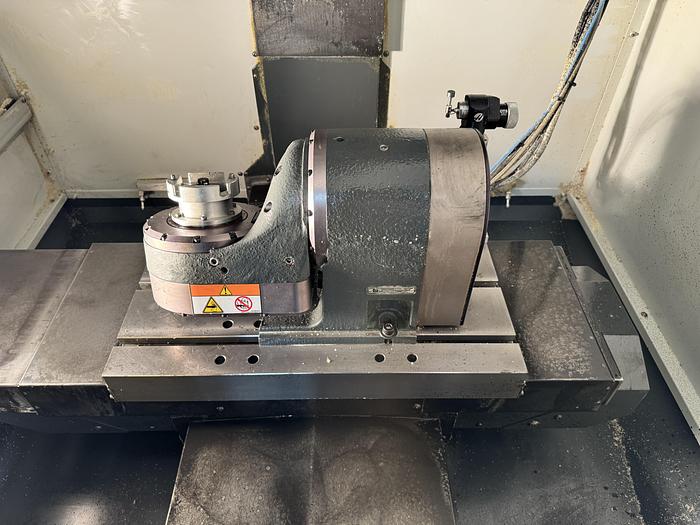

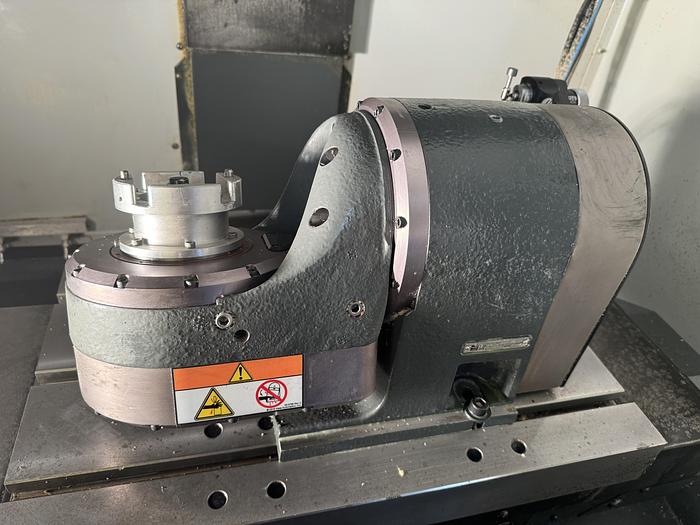

5-Axis Haas TRT100 5-Axis Trunnion table

Chip Auger

BT spindle taper

Ethernet Interface

High Speed Machining

Media display M code

Mfinin Mcode/Mfin cable assembly,

Programmable Coolant

Rigid Tapping

20+1 Sidemount tool changer

Wifi Connect

Macro option

Renishaw W/Probe

Cordinate rotation & scaling

Spindle orientation

Show All
