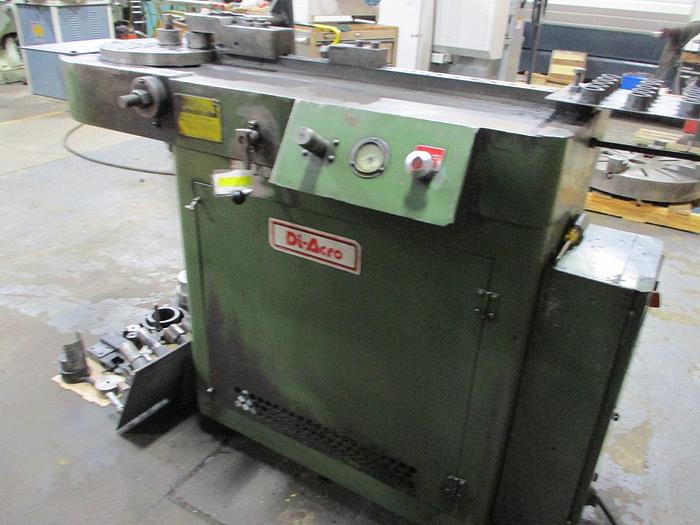

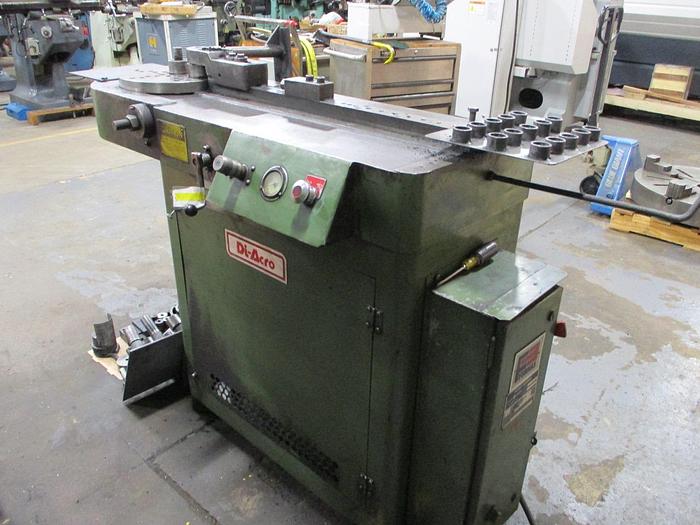

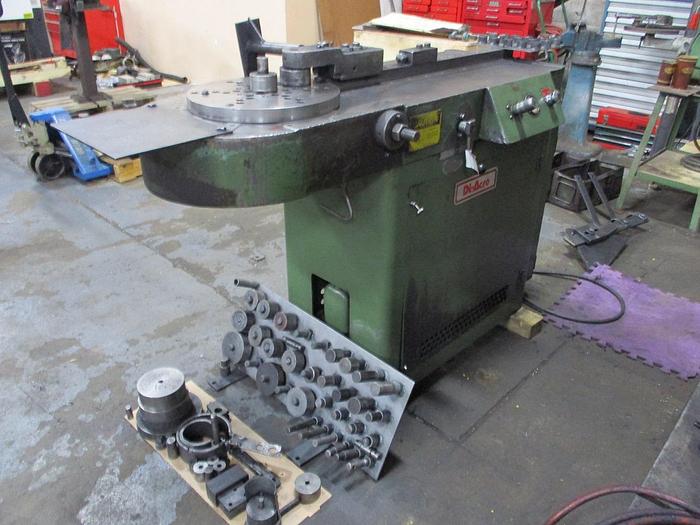

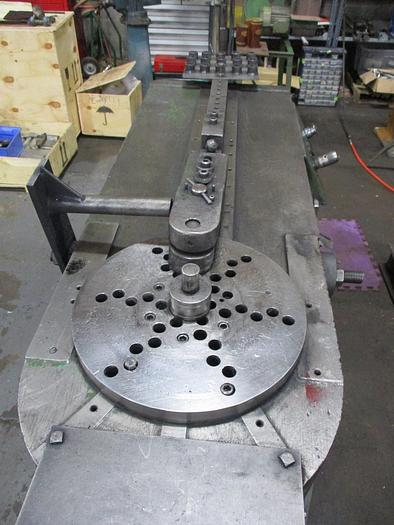

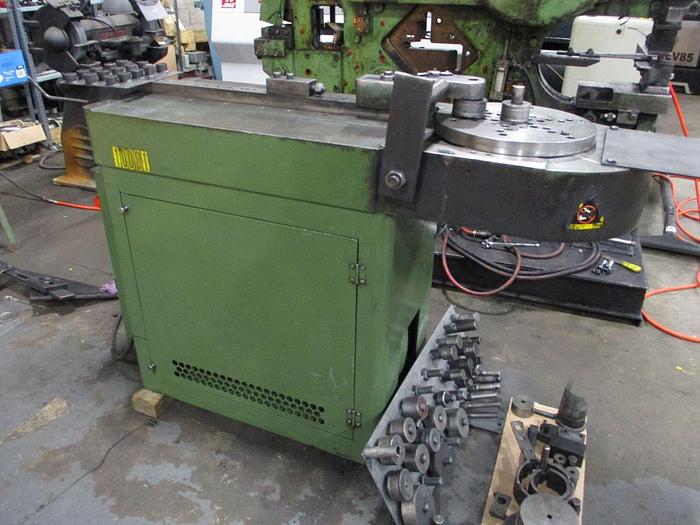

1.5", DIACRO, NO.8, HYDRAULIC TUBE BENDER

Sold

Specifications

ManufacturerDIACRO
ModelNO. 8
Stock Number4010
MAX. RADIUS CAP.24"
MAX. DEGREE OF BEND360 DEGREES
HYDRAULIC PRESSURE1,200 PSI
MOTOR3 HP
TORQUE ( 4" CYLINDER )1,150 LBS.
ROUND MILD STEEL BAR1"
STEEL TUBING - 16 GA.1.5" O.D.
STANDARD IRON PIPE1" IPS
SOLID SQUARE7/8"
FLAT STEEL BAR (EASY WAY)3/8" X 4"
FLAT STEEL BAR (HARD WAY).3/8" X 1"
APPROX. WEIGHT OF MACHINE1,200 LBS.

Equipped With

ASSORTED TOOLING
