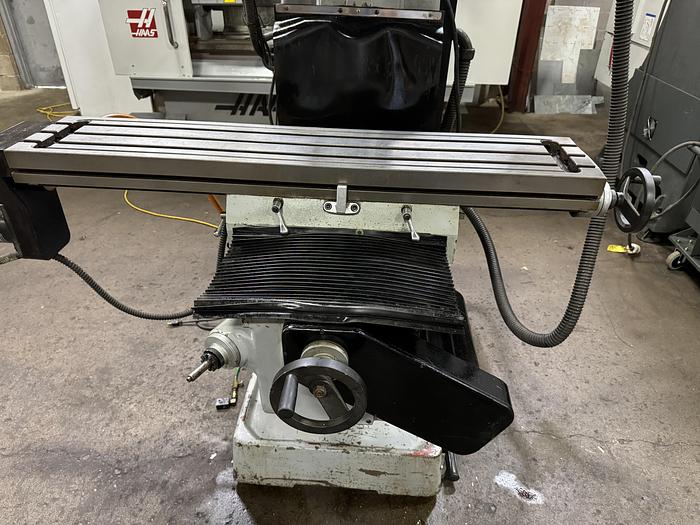

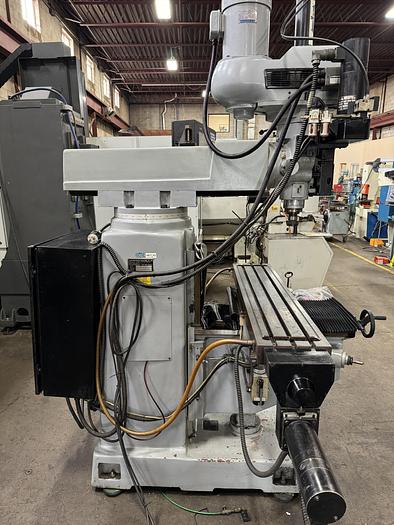

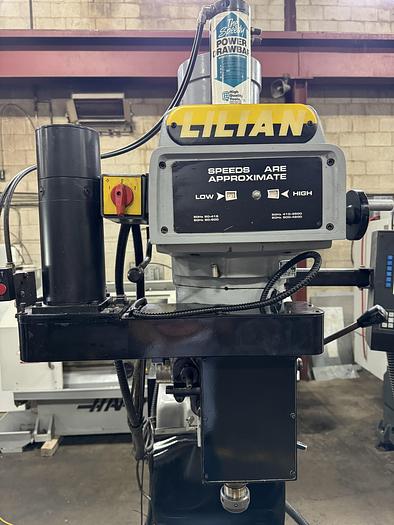

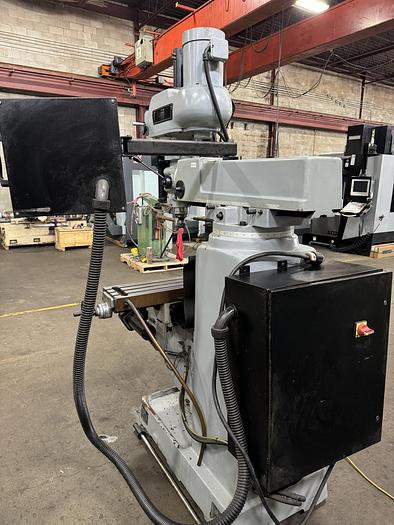

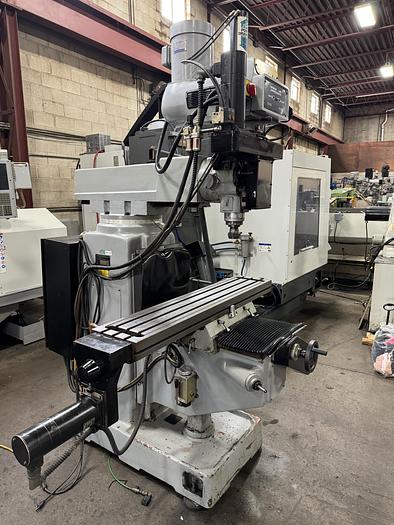

LILIAN 3 AXIS CNC MILLING MACHINE -2007
orCall (905) 669-7507
![Used LILIAN 3 AXIS CNC MILLING MACHINE -2007](https://i.machineryhost.com/ab88b15733f543179858600245108dd8/311844d7e949230897ee065f7c0f82e2/large-used-lilian-3-axis-cnc-milling-machine-2007.jpg)
Specifications
Manufacturer | LILIAN |
Model | 5VH |
Year | 2007 |
Stock Number | 4639 |
TABLE SIZE | 10" X 50" |
LONGITUDINAL TRAVEL ( MANUAL ) | 36" |
CROSS TRAVEL | 17.5" |
VERTICAL KNEE TRAVEL | 17.5" |
SPINDLE MOTOR | 7.5 HP ( UPGRADE) |
SPINDLE TAPER | NT40 |
SPINDLE SPEEDS ( VARIABLE ) | 60 - 4200 RPM |
QUILL TRAVEL | 5" |
WEIGHT | 3,630 LBS. |
MAX TABLE LOAD | 1100 LBS |
VOLTAGE | 575 /3/60 |
Equipped With

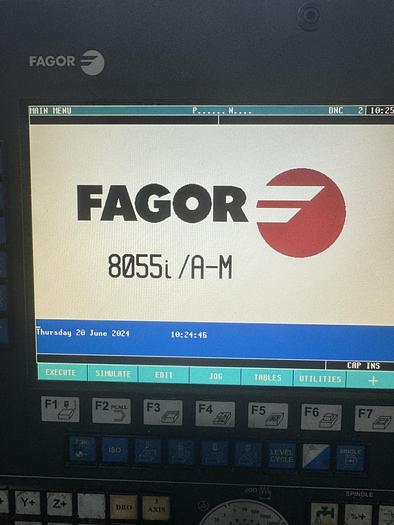

FAGOR MODEL 8055i/A-M 3 AXIS CNC CONTROL
3 AXIS CNC CONTROLLED X, Y AND QUILL
POWER DRAWBAR
COOLANT SYSTEM
USB INPUT
THIS MACHINE IS IN EXCELLENT CONDITION, WITH VERY LIGHT USE.
