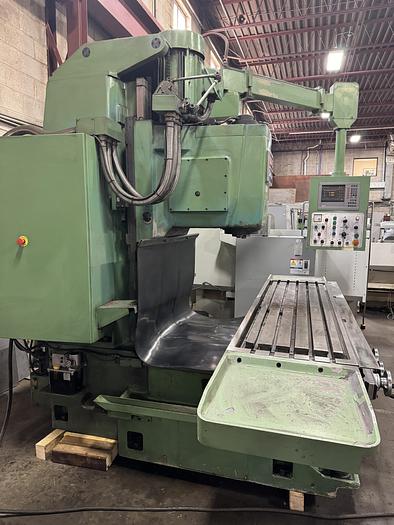

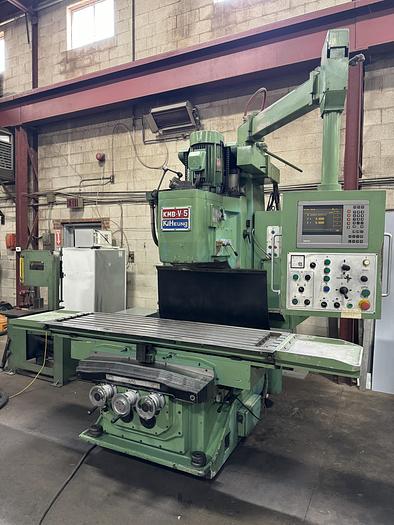

21" X 78" KIHEUNG , MODEL KMB-V-5, VERTICAL MILLING MACHINE
orCall (905) 669-7507
Specifications
| Manufacturer | KIHEUNG |
| Model | KMB-V-5 |
| Year | 1998 |
| Stock Number | 4652 |
| TABLE AREA | 21" X 78" |
| TABLE LOAD CAPACITY | 3,968 LBS. |
| LONGITUDINAL TRAVEL | 55" |
| CROSS TRAVEL | 24" |
| HEIGHT FROM TABLE TO VERTICAL SPINDLE NOSE | 2" - 27.5" |
| LONGITUDINAL & CROSS FEEDRATE | 0.63 - 78.74"/MIN. |
| VERTICAL FEEDRATE | 0.31 - 39.4"/MIN. |
| LONGITUDINAL & CROSS RAPID FEED | 126"/MIN. |
| VERTICAL RAPID FEED | 63"/MIN. |
| SPINDLE TAPER | NT50 |

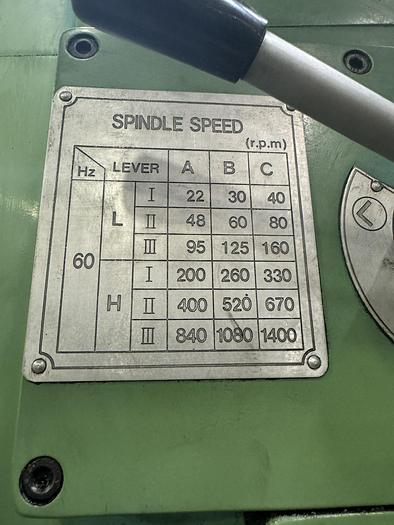

| SPINDLE SPEED | 22 - 1400 RPM |
| DISTANCE FROM COLUMN TO VERTICAL SPINDLE CENTER | 23.6" |
| APPROX. WEIGHT OF MACHINE | 14,329 LBS. |
Equipped With

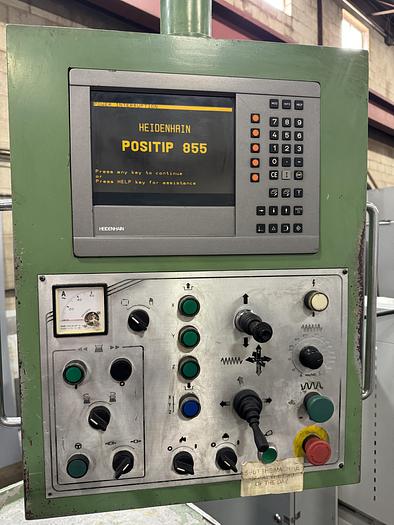

3 AXIS HEIDENHAIN DIGITAL READOUT
AUTOMATIC LUBRICATION

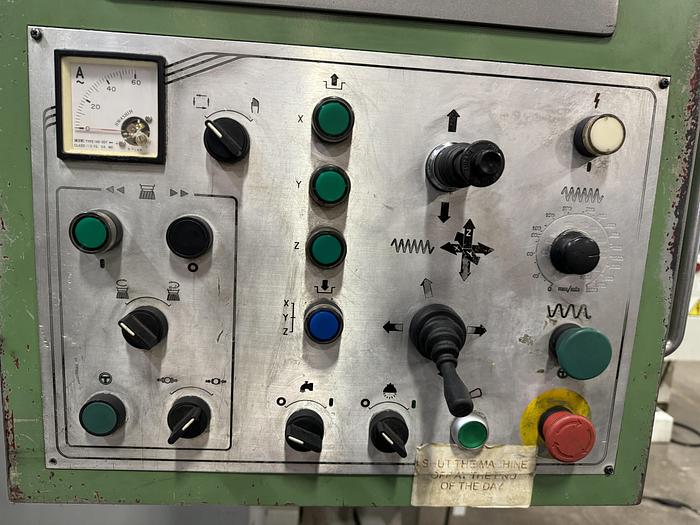

PENDANT CONTROL
THIS MACHINE HASE BEEN WELL CARED FOR AND IS IN EXCELLENT CONDITION.
