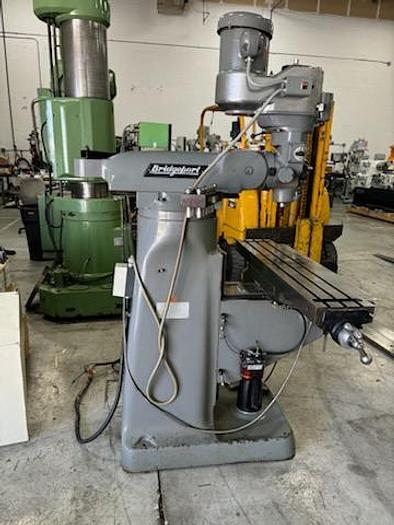

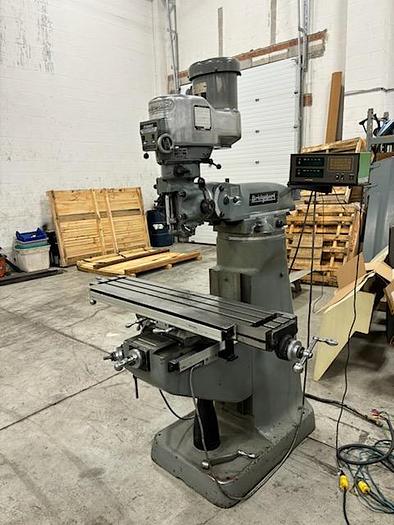

9" X 49" BRIDGEPORT VERTICAL MILLING MACHINE
orCall (905) 669-7507
Specifications
| Manufacturer | BRIDGEPORT |
| Stock Number | 4661 |

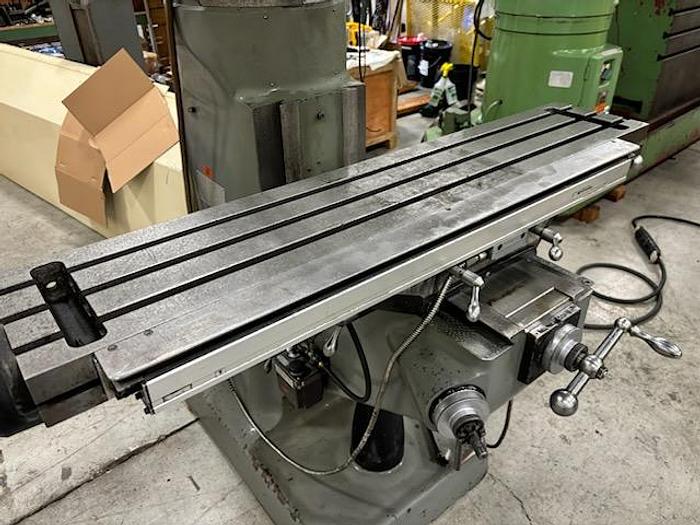

| TABLE SIZE | 9" X 49" |
| LONGITUDINAL TRAVEL | 32" |
| CROSS TRAVEL | 12" |
| VERTICAL KNEE TRAVEL | 14" |
| SPINDLE TAPER | R-8 |
| SPINDLE SPEEDS | VARIABLE |
| SPINDLE SPEED RANGE | 80 - 4200 RPM |
| QUILL TRAVEL | 5" |
| SPINDLE MOTOR | 2 HP |
| APPROX. WEIGHT | 2,100 LBS. |
Equipped With

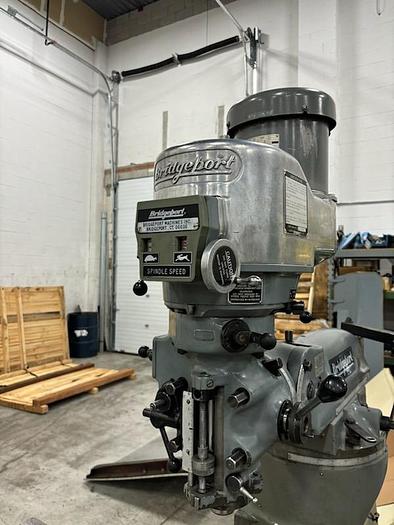

MILLING HEAD SWIVELS L-R & TILTS F-B
DOVETAIL CROSS & VERTICAL WAYS
ONE SHOT LUBRICATION SYSTEM
MITUTOYO 2-AXIS DIGITAL READOUT SYSTEM
ELECTRICS 575V/3/60, W/ REVERSING SWITCH & MAGNETIC
