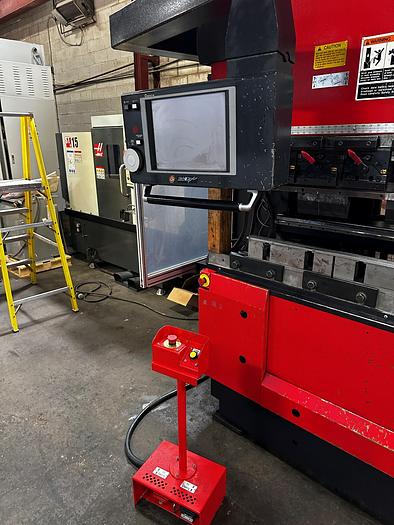

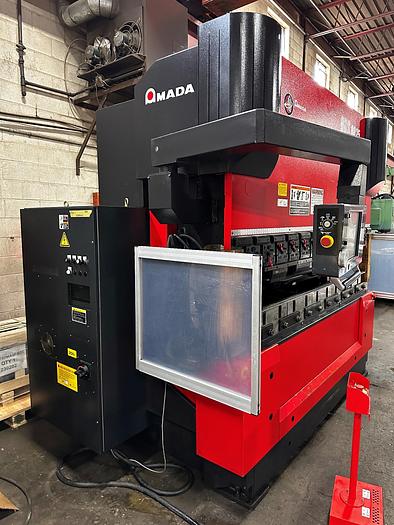

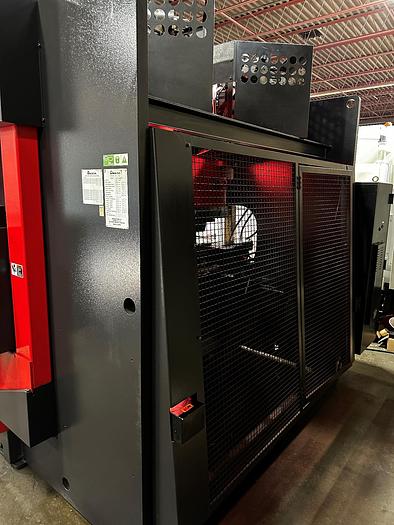

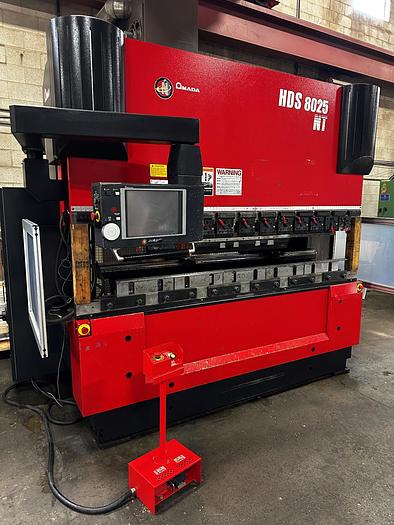

88 TON X 102", AMADA, HDS 8025NT, 2008, CNC HYDRAULIC PRESS BRAKE
orCall (905) 669-7507
Specifications
| Manufacturer | AMADA |
| Model | HDS 8025NT |
| Stock Number | 4665 |
| TONNAGE | 88 TONS |
| MAX. BED LENGTH | 102" |
| DISTANCE BETWEEN FRAMES | 87" |
| STROKE LENGTH | 7.87" |
| OPEN HEIGHT ( W/TOOL HOLDERS ) | 14.96" |
| OPEN HEIGHT ( W/O TOOL HOLDERS ) | 19.7" |
| THROAT DEPTH | 16.3" |
| TABLE HEIGHT | 38.6" |
| APPROACH SPEED | 7.87"/SEC. |
| BENDING SPEED | 0.78"/SEC. |
| RETURN SPEED | 7.87"/SEC. |
| OIL CAPACITY | 9.9 GALLONS |
| APPROX. DIMENSIONS - L x W x H | 160"L-R X 90" F-B X 108" TALL |
| APPROX. WEIGHT | 14,800 LBS. |
Equipped With
AMADA - AMNC/PC CNC CONTROL
PORTABLE FOOT PEDESTAL CONTROL
CNC HYDRAULIC BED CROWNING
ONE TOUCH PUNCH HOLDERS
