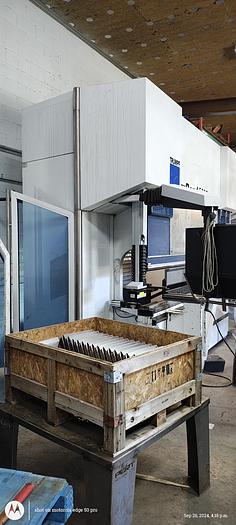

253 Ton x 10’ TRUMPF, TRUBEND 5230, CNC HYDRAULIC PRESS BRAKE - 2014
orCall (905) 669-7507
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 5230 |
| Year | 2014 |
| Stock Number | 4682 |
| TONNAGE | 253 Ton |
| BENDING LENGTH | 10’ |
| STROKE | 17.52” |
| APPROX WEIGHT | 36,000 Lbs. |
| Y-AXIS SPEED RAPID DOWN | 8.66” ips |
| Y-AXIS PRESS SPEED | 0.0039 ips |
| Y-AXIS RAPID UP SPEED | 8.66 ips |
| THROAT DEPTH | 16.53” |
Equipped With

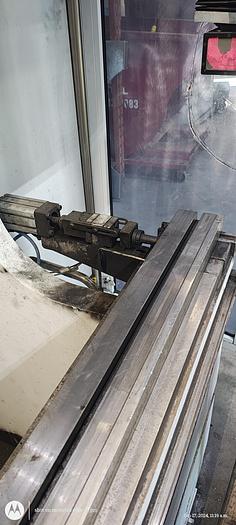

TASC 6000 CONTROL - 6-AXIS BACKGAUGE, X1, X2, R1, R2, Z1, Z2

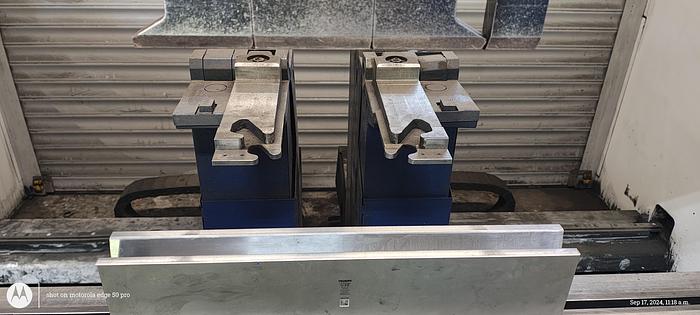

UPPER & LOWER HYDRAULIC CLAMPING
CNC PROGRAMMABLE CROWNING
EXTENDED OPENING HEIGHT
LASER LIGHT GUARDING

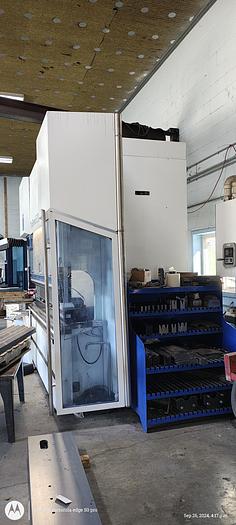

REAR SAFETY ENCLOSURE
SHEET SUPPORTS
