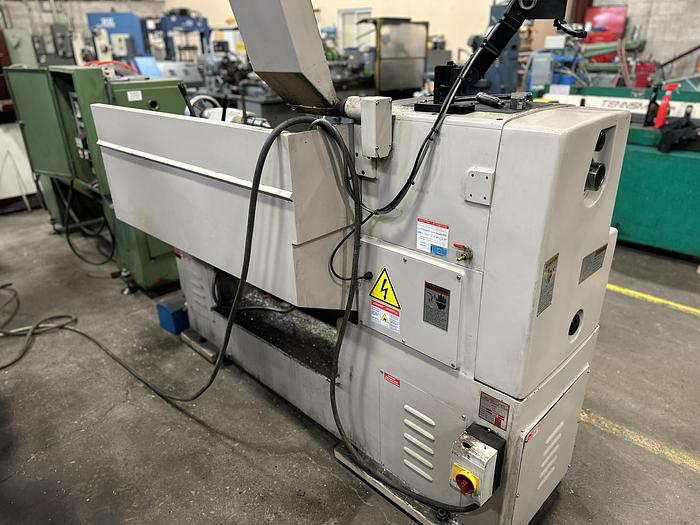

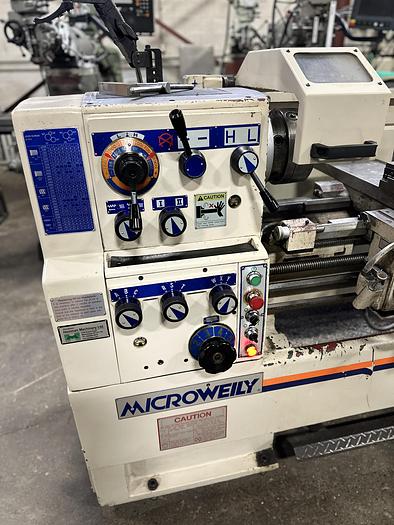

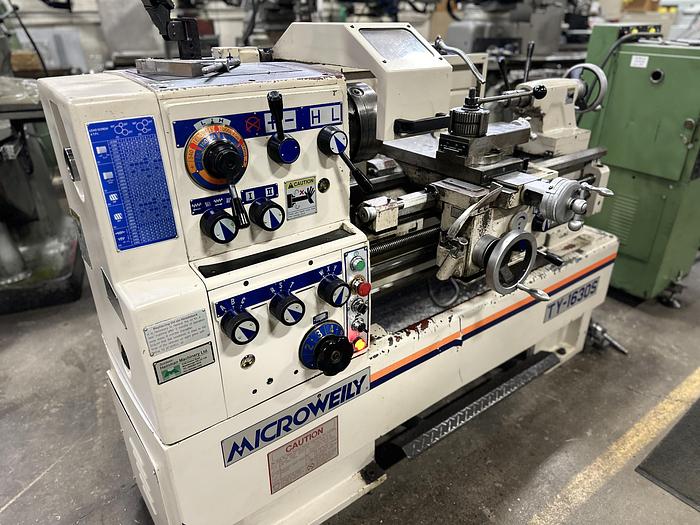

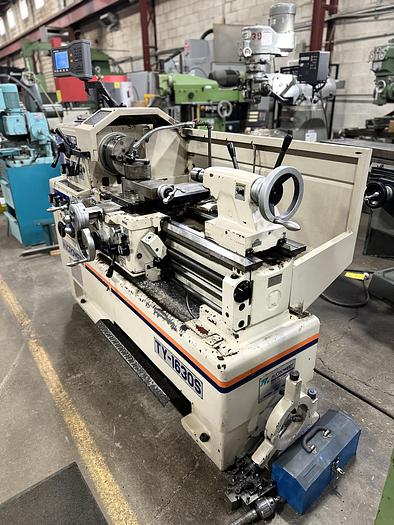

16" X 30", MICROWEILY, 2017, HIGH SPEED PRECISION LATHE
orCall (905) 669-7507
Specifications
| Manufacturer | MICROWEILY |
| Model | TY-1630S |
| Year | 2017 |
| Stock Number | 4686 |
| SWING OVER BED | 16" |
| SWING OVER CROSS SLIDE | 9.44" |
| DISTANCE BETWEEN CENTERS | 30" |
| BED WIDTH | 11.81" |
| SPINDLE BORE | 2.04" |
| SPINDLE NOSE | D1-6 |
| SPINDLE TAPER IN NOSE | MT6 |
| SPINDLE TAPER IN SLEEVE | MT4 |
| SPINDLE SPEED RANGE | 30 - 2000 RPM |
| CROSS SLIDE TRAVEL | 9.44" |
| QUILL DIAMETER | 2.12" |
| QUILL TRAVEL | 5.11" |
| QUILL TAPER | MT4 |
| SPINDLE MOTOR | 5 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. MACHINE WEIGHT | 3,470 LBS. |
Equipped With
2- AXIS HEIDENHAIN DIGITAL READOUT
STEADY REST
FOOT BRAKE
COOLANT
CHUCK GAURD
EXTRA TOOL HOLDERS
40 POSITION QUICK CHANGE TOOLPOST
