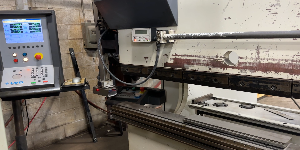

90 TON X 10', LVD, CNC HYDRAULIC PRESS BRAKE
or
Call (905) 669-7507
Specifications
| Manufacturer | LVD |
| Model | 90 BH 10 CAD-CNC |
| Stock Number | 4760 |
| TONNAGE | 90 TON |
| OVERALL LENGTH OF BED | 10' |
| DISTANCE BETWEEN UPRIGHTS | 102" |
| APPROX. WEIGHT | 14,900 LBS. |
| STROKE | 7.87" |
| MAX. DISTANCE BETWEEN RAM & TABLE | 15.7" |
| DEPTH OF THE GAP | 15.7" |
| APPROACH SPEED | 5"/SEC. |
| WORKING SPEED | 0.43" / SEC. |
| RETURN SPEED | 0.44" / SEC. |
| MOTOR | 10 HP |
Equipped With
LVD CNC CONTROL - Y1, Y2, X, R, Z1,Z2, XZ ( FINGER ADJUSTMENT )
CNC CROWNING
FOOT PEDAL / FOOT PEDESTAL CONTROL
