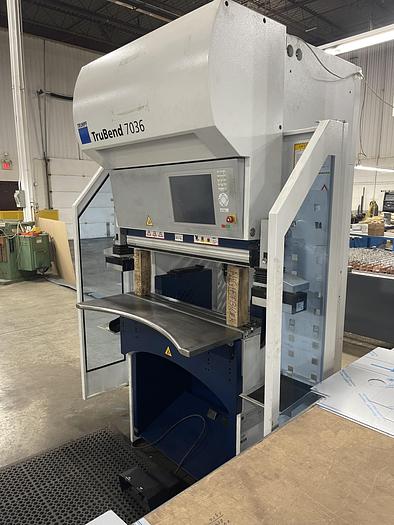

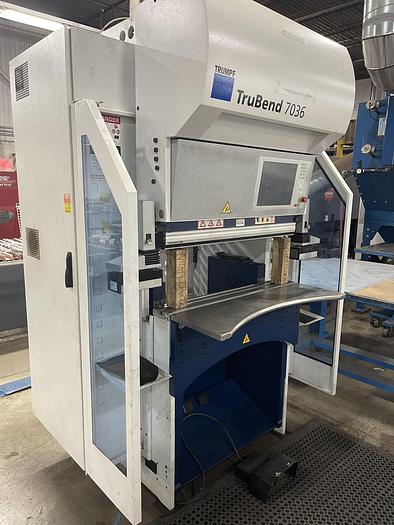

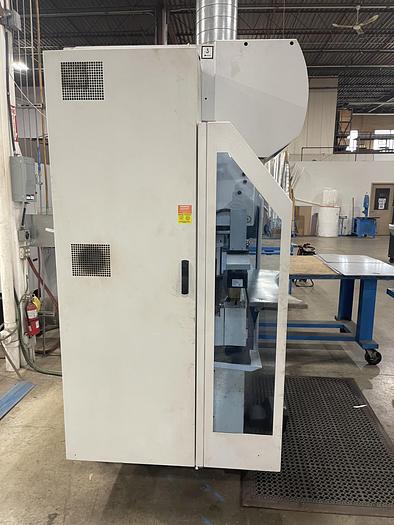

40 TON X 40", TRUMPF, TRUBEND 7036 ELECTRIC CNC PRESS BRAKE, 2012
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 7036 |
| Year | 2012 |
| Stock Number | 4181 |

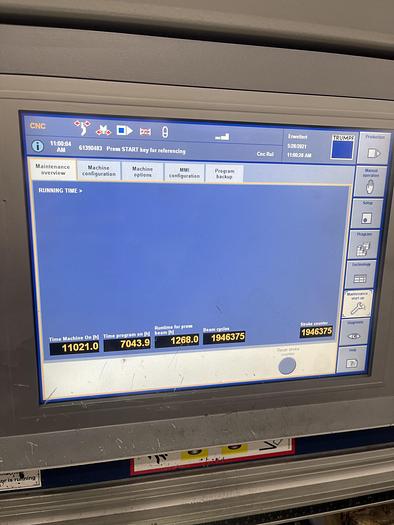

| Hours | 1,268 |
| TONNAGE | 36 METRIC / 40 TON U.S. TONS |
| OVERALL BENDING LENGTH | 40" |
| WIDTH BETWEEN COLUMNS | 37" |
| MAX. TABLE/BEAM DISTANCE | 16.5" |
| USABLE INSTALLATION HEIGHT | 12" |
| THROAT DEPTH | 6" |
| OPERATING HEIGHT | 45" |
| SPEEDS: Y-RAPID | 520 IPM |
| Y-WORKING SPEED | 59 IPM |
| Y RETURN TRAVERSE SPEED | 520 IPM |
| X-AXIS | 2362 IPM |
| R-AXIS | 780 IPM |
| Z-AXIS | 2362 IPM |
| Y-AXIS POSITION ACCURACY | 0.00008" |
| X-AXIS POSITION ACCURACY | 0.0008" |
| R-AXIS POSITION ACCURACY | 0.0008" |
| Y-AXIS STROKE | 5" |
| TRAVEL PATH X-AXIS | 9" |
| MAX. GAUGE AREA IN X | 20" |
| TRAVEL PATH R-AXIS | 3" |
| APPROX. WEIGHT | 5,700 LBS. |
Equipped With

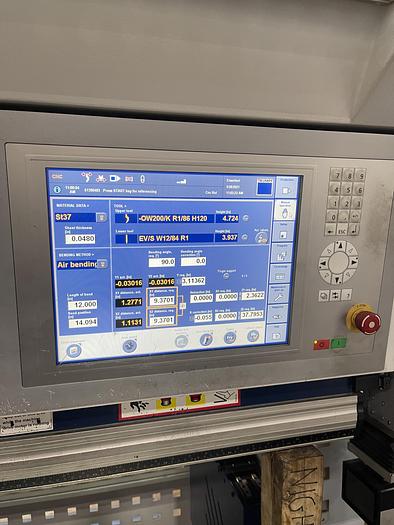

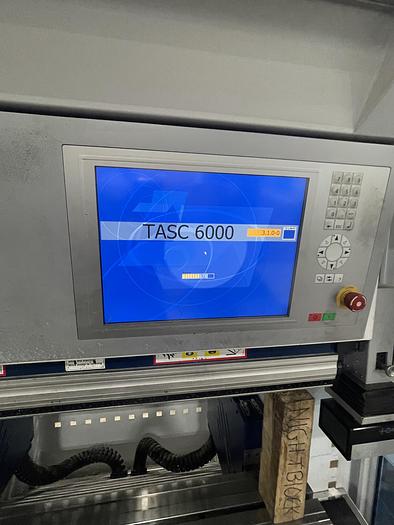

CNC TASC 6000 TOUCH SCREEN CNC CONTROL, 6-AXIS BACKGAUGE X1, X2, R1, R2, Z1, Z2
WILA NEW STANDARD TOP AND BOTTOM HYDRAULIC CLAMPING
15" TOUCH SCREEN
NETWORK READY
LAZERSAFE SAFETY SYSTEM
THIS MACHINE IS IN EXELLENT CONDITION AND CAN BEVIEWED UNDER POWER IN A PLANT.
